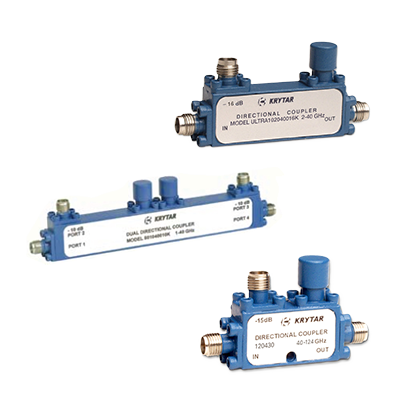

Coaxial directional couplers are invaluable passive components for signal routing in communications networks and test-and-measurement systems. Broadband Directional Couplers, SMA Directional Couplers, and Type N Directional Couplers are available.
These RF microwave components are available with SMA and Type N coaxial connectors for various frequency ranges and power levels from 0.5 through 18.0 GHz. These devices can sample or couple a small amount of power from a main signal line at typical coupling levels of 6, 10, 20, and 30 dB less than the mainline power level.
High-performance stripline directional couplers maintain high directivity across their frequency ranges, with coupling flatness of ±1 dB or better for most models. The rugged RF/microwave directional couplers handle average (CW) power levels up to 50 W and peak power levels up to 3 kW, with less than 1 dB insertion loss for all models.
